Metadata configuration

Introduction

Alfred Finder configures its document views with forms. The style of configuration is based on the Share forms configuration used by Alfresco and is compatible with the Alfred Desktop metadata configuration.

Alfred Finder comes with a default configuration that works for the Alfresco content model out of the box, but you might want to configure how you custom metadata model is displayed and used.

Where are forms used?

View & edit metadata

The metadata panel is a dynamic panel that evaluates the document type and aspects of the selected document and generates a customized form. The panel can be placed in three different modes, that can be configured individually: View mode - To view metadata; Edit mode - To edit metadata; and Create mode - To provide metadata when creating a new document.

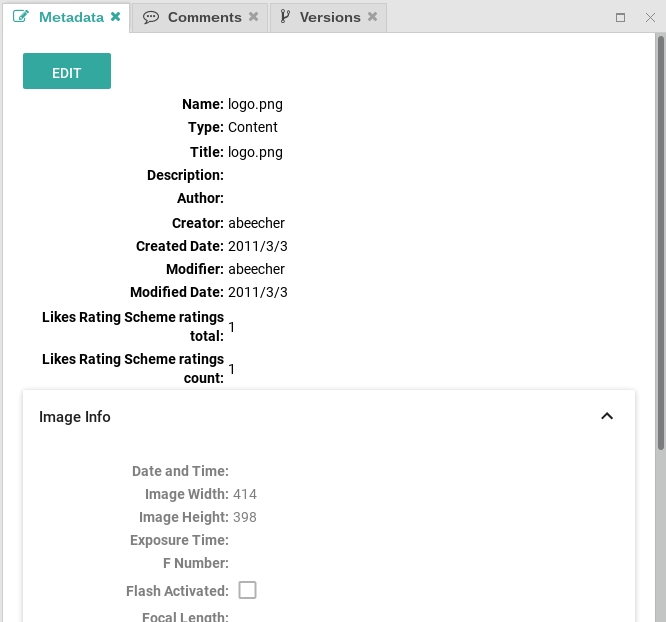

The metadata panel in view mode

Search properties

The list of properties that can be searched for in the searchbar can be configured using the forms configuration, which lists all the properties you would like to search on.

Columns in the search result list

In the search result view, the user can select columns to show or hide in the results table.

It is also possible to configure column sets, which are fixed sets of columns that can be used to quickly switch between columns used for two different contexts.

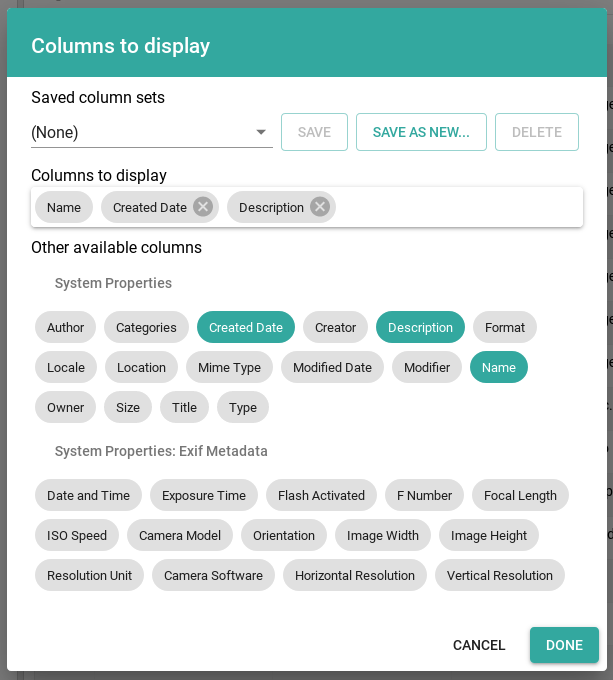

Result list configuration

Configuration files

Forms are configured in YAML files that adhere to the forms configuration schema.

An empty form configuration template looks like this:

- Id: some-id # Id of the form. This id is used by the evaluator to determine if this configuration applies
  Evaluator: string-compare|node-type|aspect # Type of evaluator to use to determine if this configuration applies
  Version: 1 # Version of the configuration schema. Always 1 for now.
  Forms:
    - Id: null # Id of the form. Defaults to null when omitted.
      Fields: # Fieldsets contained in this form
        - Id: template # Id of the fieldset. Defaults to the empty string when omitted.
          Text: Template fieldset # Title of the fieldset
          Description: This is a description of what is in the fieldset
          Help: This is extended help text about the fieldset
          Template: null # Template to use for the fieldset
          Parameters: {} # Additional parameters for the fieldset template
          Fields: # Fields contained in this fieldset
            - Id: cm:name # Id of the field
              Text: Name # Label of the field
              Help: The filename of the document # Helptext about the fieldset
              Template: null # Template to use for the field
              Parameters: {} # Additional parameters for the field template
              ReadOnly: false # Forces the field to always be rendered as rendermode View
              RenderMode: # Determines in which rendermodes the field is shown
                - Hidden # Hides the field in all render modes
                - View
                - Edit
                - Create

Top level

The top level configuration has 4 properties:

  • Id: string The id of the configuration. Multiple forms with the same id will override each other, the last one that is loaded wins. How the id is used for matching depends on the evaluator.
  • Evaluator: string Evaluator that is used to check if the configuration applies.
  • Version: number The configuration schema version of the configuration. The current supported version is 1.
  • Forms: Form[] Array of forms that are specified by this configuration.

Alfred Finder supports configuration schema version 1, configurations with other versions are ignored.

The Evaluator determines how an Id is matched:

  • string-compare: The id is matched against a string
  • node-type: The id is matched against the type of a node (short or long qname)
  • aspect: The id is matched against the aspects of a node (short or long qnames)

If multiple configurations are matched for the same node, they will be merged when constructing the metadata panel. See Configuration Merging for more details.

Top level > Forms

The form configuration has 2 properties:

  • Id: string? The id of the form. This id defaults to undefined when omitted. This id is currently unused, but may be used for future extension points. Values other than undefined are unsupported.
  • Fields: Field[] Array of fieldsets in this form

Top level > Forms > Fields

A fieldset groups a number of fields together. When merging multiple configurations together, fieldsets with the same Id are merged together. See Configuration Merging for more details.

The fieldset configuration has 10 properties:

  • Id: string The id of the field set. Defaults to null when omitted.
  • Text: string? The title of the fieldset. May be displayed in Alfred Finder, depending on the used form template: If the template does not show a title, the title will stay invisible.
  • TextSourceId: string? Reference to translation string of the fieldset title. Currently not used by Alfred Finder.
  • Description: string? Description of the fieldset. Currently not displayed in Alfred Finder.
  • DescriptionSourceId: string? Reference to translation string of the fieldset description. Currently not used by Alfred Finder.
  • Help: string? Extended help text about the fieldset. Currently not displayed in Alfred Finder.
  • HelpSourceId: string? Reference to translation string of the fieldset help. Currently not used by Alfred Finder.
  • Template: string? Id of the template to use to display the fieldset. It can be used to alter how the fieldset is displayed. Defaults to gui.controlfactory.fieldset.centered
  • Parameters: object? A key-value object (string to string) with parameters for the fieldset template. Supported parameters depend on the template.
  • Fields: Field[]? Array of fields in this fieldset

The Template property supports the following values:

  • gui.controlfactory.fieldset.centered: A centered layout with field label on the left and field value on the right. The layout right aligns field labels and left aligns field values around a vertical axis.
  • gui.controlfactory.fieldset.1-column: Single column layout where field label and field value are left aligned next to each other.
  • gui.controlfactory.fieldset.2-column: Two column layout variant
  • gui.controlfactory.fieldset.3-column: Three column layout variant
  • gui.controlfactory.fieldset.group: Draws a card to group fields together. The value provided in Text is used as title for the card.
    • Parameter centered: boolean If true, use the centered fieldset layout inside the group. If false, use the 1-column layout. Default false.
    • Parameter collapsible: boolean Makes the grouped fieldset collapsible. Default false
    • Parameter start-collapsed: boolean If the fieldset is collapsible, show the fieldset initially as collapsed. Default false

Top level > Forms > Fields > Fields

A field represents a single property of a document.

The field configuration has 11 properties:

  • Id: string The id of the field. Required.
  • Text: string? The label of the field. Defaults to the name of the field in the document model.
  • TextSourceId: string? Reference to translation string of the field label. Currently not used by Alfred Finder.
  • Description: string? Description of the field. Currently not displayed in Alfred Finder.
  • DescriptionSourceId: string? Reference to translation string of the fieldescription. Currently not used by Alfred Finder.
  • Help: string? Extended help text about the field. Currently not displayed in Alfred Finder.
  • HelpSourceId: string? Reference to translation string of the field help. Currently not used by Alfred Finder.
  • ReadOnly: boolean? Forces the field to always be rendered as it is in the View rendermode. Defaults to true for properties marked as protected in the document model. Defaults to false for other properties.
  • RenderMode: RenderMode[]? The rendermodes of the metadata panel for which the field is visible.
  • Template: string? Id of the template to use to display the field. It can be used to alter how the field is displayed. The default value depends on the dictionary type of the property.
  • Parameters: object? A key-value object (string to string) with parameters for the field template. Supported parameters depend on the template.

RenderMode property

The RenderMode property supports the following values:

  • Hidden: Forces the field to be hidden in all render modes
  • Create: Show the field when creating metadata for new document
  • Edit: Show the field when editing metadata
  • View: Show the field when viewing metadata

Template property

The Template property supports the following templates:

  • gui.controlfactory.property.label: Always read only and shows the value of the property as text. (default for d:noderef, d:qname, d:content)
  • gui.controlfactory.property.textbox: One line text field for short text values. (default for d:text, d:mltext (default value only), d:int, d:long, d:float, d:double)
  • gui.controlfactory.property.textarea: Multi-line text field for text values. Does not support editing multi-value fields.
  • gui.controlfactory.property.listconstraint: Dropdown field to select one/multiple values of a list constraint. (default for fields with a LIST constraint)
  • gui.controlfactory.property.datetimepicker: Date picker for date values. Does not support editing multi-value fields. (default for d:date and d:datetime)
    • Parameter date-format: string MomentJS format string to set how the date should be displayed. Defaults to Y/M/D.
    • Parameter override-default-value: "today"|Date|null A string “today” to set the default value to the current date; an RFC2822 or (a variant of) ISO 8601 date that will be used as the default value; or null to not set any default value. Defaults to null.
  • gui.controlfactory.property.checkbox: Checkbox for boolean values. Does not support multi-value fields. (default for d:boolean)
  • gui.controlfactory.property.currency: Specialised text field for currency. Stores monetary value as a number of cents and displays it as a decimal number. Does not support multi-value fields.
  • gui.controlfactory.property.size: Read only field that shows the human readable size of a d:content property.
  • gui.controlfactory.property.mimetype: Read only field that shows the mimetype of a d:content property
  • gui.controlfactory.property.categorypicker: Category picker (default for d:category)
  • gui.controlfactory.property.authority: Not supported yet
  • gui.controlfactory.property.dropdown: Custom autocomplete dropdown based on a source file. <!-- NOTE: Resolvers are used for more things internally, but external use is only supported for this template. -->{=html}

Parameters property

The Parameters property supports following properties across all templates:

  • type: property The type that the qname parameter refers to. Required when the qname parameter is present, will default to property otherwise. Only the value property is supported by Alfred Finder, other values are reserved for future extension.
  • qname: string|undefined The short or full qname of the property that is linked to this field. Defaults to Id, except for special fields, where it is explicitly invalid and must not be present.
  • label-color: CSSColor? The text color of the label. Can be used to emphasize a certain field. Must be a valid CSS color expression. If not present, it defaults to the text color used on the webpage.
  • mandatory: boolean? Adds an indicator that a field is mandatory. Defaults to the mandatory state of the property in the document model.
  • protected-override: boolean? If true, disable ReadOnly that was automatically enabled because a property is protected. Use of this property is not recommended, set ReadOnly: false on the field instead.
  • default-value: any The default value to show when a property is not present on a node. This default value will also be prefilled in the form when creating new content. Its type must be compatible with the type of the property.
  • min-input-length: number? If the field uses a list of allowed values of some sort (Resource resolver, list-of-values constraint, categories, …). This is the minimum number of characters that has to be typed in the searchbox before filtered results are shown. Defaults to 0.
  • max-display-result: number? If the field uses a list of allowed values, this is the maximum number of results that will be shown in the filtered results list. Defaults to an unlimited number of results.

Special field ids

Some field ids are interpreted as special, and will be rendered by a custom template. Most configuration options for normal fields are also valid for special fields. Illegal configuration options will be ignored.

  • type: Shows a dropdown menu to change the document type.
    • Parameters starting doctype. are used to build a tree of document types that are shown in the dropdown menu.
  • template-name: Not supported in Alfred Finder, rendered as an empty field.
  • aspect-picker: Shows a dropdown menu to change the aspects.
    • Parameters starting with aspect. are used to build a tree of aspects that are shown in the dropdown menu.
  • xmd.validate.message: Not supported in Alfed Finder

Examples

Resource resolver

It is possible to add an autocomplete metadata field where the results are based on the contents of a source file. In edit mode you can start typing in the text box and based on the values in a source file it will suggest all possible values. Multi-value properties and single-value properties are both supported.

This feature is similar to a list constraint (defined in the model) on a property but the list has the advantage of being fully editable. You do not have to make changes to the document model. you only need to change the list in the source file. To enable this feature you will need 2 custom made webscripts. The first webscript is responsible for searching a value in the source file. The second webscript is responsible for looking up a key in the source file and resolving it to the corresponding value.

Both webscripts should return a json result that looks like the following the following output:

[
    {
        "guid": "1",
        "label": "Colette"
    },
    {
        "guid": "2",
        "label": "Alfredo"
    },
    {
        "guid": "3",
        "label": "Drew"
    }
]

The following configuration is required to register the resource resolver:

- Id: repo.resources
  Evaluator: string-compare
  Version: 1
  Forms:
    - Fields:
      - Id: guid
        Fields:
          - Id: lookup
            Parameters:
              endpoint: '{url:base}/s/resource/csv/translate?id={0}&format=json&alf_ticket={auth:ticket}'
              resource-key: guid
              resource-value: label
              resource-error: error
          - Id: query
            Parameters:
              endpoint: '{url:base}/s/resource/csv/search?property={parameter:qname}&query={0}&format=json&alf_ticket={auth:ticket}'
              resource-key: guid
              resource-value: label
              resource-error: error

Under Fields you can see 2 objects. The first object is the lookup object. This object is used to show the property value in view mode. The endpoint is the url to the webscript that is responsible for the lookup. The second object is the query object. This object is used to search for all possible values for the property in edit mode. The endpoint is the url to the webscript that is repsonsible for querying.

Now you also need to configure the dropdown control for the metadata panel. You can do this in the following way:

- Id: xenit:exampleAspect
  Evaluator: aspect
  Forms:
    - Fields:
        - Id: dropdown-set
          Fields:
            - Id: xenit:exampleProperty
              Template: gui.controlfactory.property.dropdown
              Parameters:
                resolver: repo.resources.guid

You have to use the gui.controlfactory.property.dropdown template.

The resolver parameter points to the id of the fieldset containing the lookup and query objects from the previous configuration snippet. The resolver name is constructed by concatenating the fixed value repo.resources. and resource resolver fieldset id.

Configuration merging

When multiple configurations specify the same Id, they have to be merged into one configuration before a form can be built.

Top level configuration merging

The top level configurations with the same id are not merged. Configurations that are loaded later overwrite earlier configurations with the same id. When debug is enabled for finder-services:configuration:merge, a message is printed when a configuration is overwritten.

Configurations are loaded in this order:

  1. Embedded default configuration
  2. *-forms-config.yaml files from Data Dictionary/Fred/Forms
  3. *-forms-config.yaml files from Data Dictionary/Finder/Forms

The order in which files are loaded within each step is undefined and should not be relied on.

Forms configuration merging

When multiple configurations are matched for a node, the forms contained within these configurations are merged by id.

The configuration with a node-type evaluator and an Id matching the type of the node is looked up and used as base configuration. If this configuration does not exist, the configuration with a string-compare evaluator and Id of default-node is used as a base.

Additional configurations are loaded with the aspect evaluator and an Id matching any of the aspects of the node. The order of configurations within this set is undefined and should not be relied on.

Starting from the base configuration, fieldsets defined in the aspects are merged to one configuration. If the default-node configuration was used as base configuration, all fields that are present on the node, but are not present anywhere in the configuration are appended to the fieldset with id auto.

Fieldsets that are referenced in the base configuration retain their position as specified in the base configuration. Fieldsets that were not referred to are appended to the form in the order they are encountered.

Fieldsets are merged by id: fieldsets present in later configurations overwrite fieldset settings from earlier configurations. Fields from later configurations are appended to the fields specified in earlier configurations.

Fields with the same Id within the same fieldset are not merged, but are shown as separate fields.
